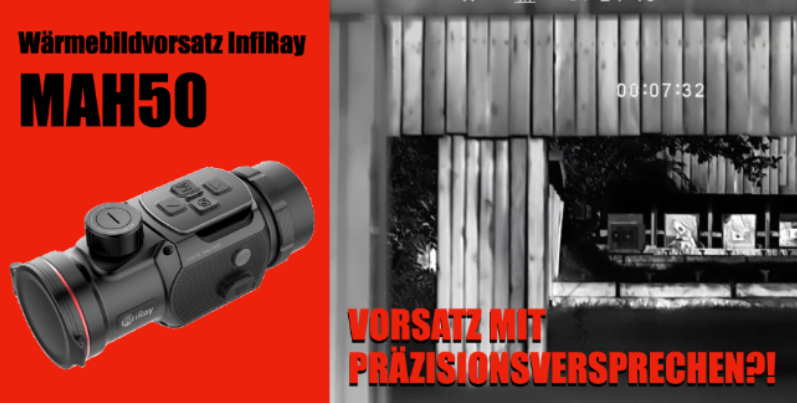

The InfiRay MAH50 – A Thermal Imaging Attachment with Precision Promise

Gunfinder Magazine

This time I did not stumble upon an innovation by browsing Gunfinder or through endless internet research. Rather, the inquiry came directly to me, asking if I would be interested in taking a first look at a brand new device – an opportunity I certainly did not want to miss!

The newly introduced thermal imaging attachment from Infiray presents some interesting innovations. On one hand, it offers the promise of 1 MOA precision, which sounds extremely promising for hunting applications. On the other hand, it features a detachable control unit that can also be used as a remote control. Both features proved to be extremely practical and useful during my testing phase.

After a thorough examination of the device, I can summarize that it has left an outstanding first impression with its user-friendly operation, excellent precision, and solid workmanship. For a detailed presentation and further insights, I have prepared a video that you should not miss.



At the time of my tests, the device was not yet available for sale, and there was also no information about it online. Therefore, I unfortunately cannot provide you with exact details about the scope of delivery and the price. However, the packaging in which the device arrived was extremely appealing and of high quality, and the contents of the box were quite impressive.

The delivery of my test device included, in addition to the device itself, a scope adapter with a diameter of 50 mm, a power supply, a charging cable, and a mount for an external power bank. Furthermore, there was a connection cable for the power bank, a mount for attaching the detachable control unit to the weapon, a Picatinny rail for attaching additional accessories, and 10 heat pads for calibration and zeroing.

The technical specifications of the device are impressive and correspond to what one would expect from a top model:



InfiRay MAH50 - Technical Data

Unfortunately, a user manual was also among the missing information when I received the device. Despite this small obstacle, I was able to navigate the menus quite quickly. The device not only offers a photo and video function but also allows you to save different profiles when zeroing. This function proves to be particularly useful when using multiple weapons for hunting or when sharing the device with others.




The zeroing at the shooting range was done with a Ruger American Hunter in caliber 6.5 mm Creedmoor, loaded with Hornady Match ammunition. This combination proved to be, as can be seen in the accompanying video, extraordinarily precise. Repeatable shot groups under 25 mm are not uncommon, which provided excellent conditions to verify the device's precision promise. However, on the first shot with the mounted device, we were 6 cm too far left and too low. The menu is accessed in the usual manner by pressing the menu button for a longer time. Then you navigate to the reticle and confirm with the menu button. The adjustment of the device is then precise and simple – provided you do not confuse the "Plus" and "Minus" settings, as I did. You can see the result of these adjustments in the video; it truly speaks for itself.

A disadvantage that I noticed during the relatively short testing period concerns a rather subjective preference: The device's battery is built-in. While InfiRay offers suitable accessories – some of which are even included as standard – to compensate for this limitation, this solution leads to increased weight and a bulkier design of the weapon. Whether the additional accessories are really necessary and how reliable the battery performs under practical conditions, especially in cold winter weather, will have to be seen in future uses.
